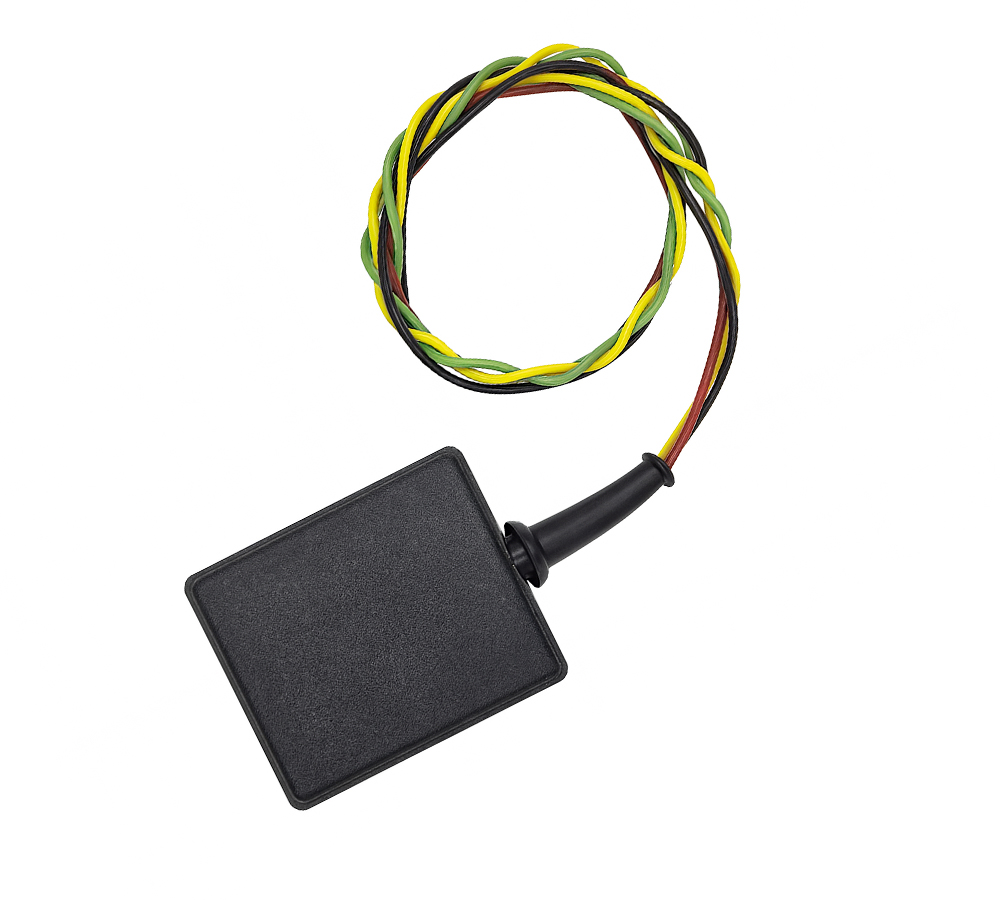

SCR / DOC Emulator for Isuzu Tier 4 Final Industrial Engines
Easy to install solution to Remove/Off SCR / DOC on Isuzu Tier 4 Final Industrial Engines.
The device is made of high quality components and it is produced in EUROPE.
Each device is tested and subjected to quality control before being dispatched to client
Most important features:
- Emulation of whole SCR / DOC system
- Easy Installation (only 4 wires to connect)
- Fully water resistant
- Produced from industrial components
Emulated Components of SCR system:
- NOx Sensor Downstream
- NOx Senosr Upstream
- Urea quality / Level Sensor
- DCU Control Unit
- Urea pump
- Exhaust Temperature Sensors
Isuzu Engines Compatible:
- 4JJ1T Stage IV/ Tier 4 Final
- 4JJ1X Stage IV/ Tier 4 Final
- 4HK1X Stage IV/ Tier 4 Final
- 6HK1X Stage IV/ Tier 4 Final
- 6UZ1X Stage IV/ Tier 4 Final
- 6WG1X Stage IV/ Tier 4 Final
Example Models compatible:
Case CE:
- CX130D
- CX240D
- CX350D
- CX490D
- CX750D
Kobelco:
- SK 140 SRLC 5 (AR-4JJ1X)
- ED160 BR-5
Hitachi:
- ZX130-6
- ZX160LC-6
- ZX180LC-6
- ZX210LC-6
- ZX210-6
- ZX250LC-6
- ZX300LC-6
- ZX380LC-6
- ZX470LC-6
- ZX670LC-6
This Emulator is Developed for Tier 4 Final Isuzu Engines with SCR and DOC Catalyst. It can also be installed In Isuzu Stage V Engines with SCR / DPD(DPF) but it don’t cover DPF Emulation. Full Support for Isuzu Stage V Engines is under developmnet.
The set includes:
- SCR / DOC Emulator for Isuzu Industrial Engines Tier 4 Final – 1pcs.
- Installation Manual
DCU Replacement Procedure:
- Find the DCU.
- Locate the DCU Power Supply wire after the Ignition Wire (+15). It is PIN 52 of the X2 Connector of the DCU. Cut this wire and connect the Emulator’s RED wire to the wire end going to the Harness, not to the ECU.
- Locate the DCU Ground Wire. It’s PIN 1 or 2 of the X2 Connector of the DCU. Connect the Emulator’s BLACK wire here.
- Find the DCU CAN Connection. It’s PIN 11 and 12 of the X2 Connector, forming a twisted pair. For PIN 11 (CAN H), cut this wire and connect the Emulator’s GREEN wire to the wire end going to the Harness, not to the ECU. For PIN 12 (CAN L), cut this wire and connect the Emulator’s YELLOW wire to the wire end going to the Harness, not to the ECU.
- Diagnostic Connector way:
Different manufacturers use different Diagnostic Connectors.
- KOBELCO use OBD Diagnostic Connector
- HITACHI Use they own OEM Diagnostic connector
- Locate the Diagnostic Connector.
- Connect the Green Wire to CAN H on the Diagnostic Connector.
- Connect the Yellow Wire to CAN L on the Diagnostic Connector.
- Connect the Black Wire to the Machine Ground (GND, Battery Minus).
- Connect the Red Wire to the Ignition Signal (+15, Power after the Key is ON).
- Remove the Fuse for the DCU.
- Clear DTC if needed.
2 YEAR WARRANTY
If you are looking for model not listed here and on other list on this shop, please contact us directly on info@bluetruck24.eu with your model number. We will check for compability.
