EMULATOR SCR/DPF/DEF FOR PACCAR MX GHG17

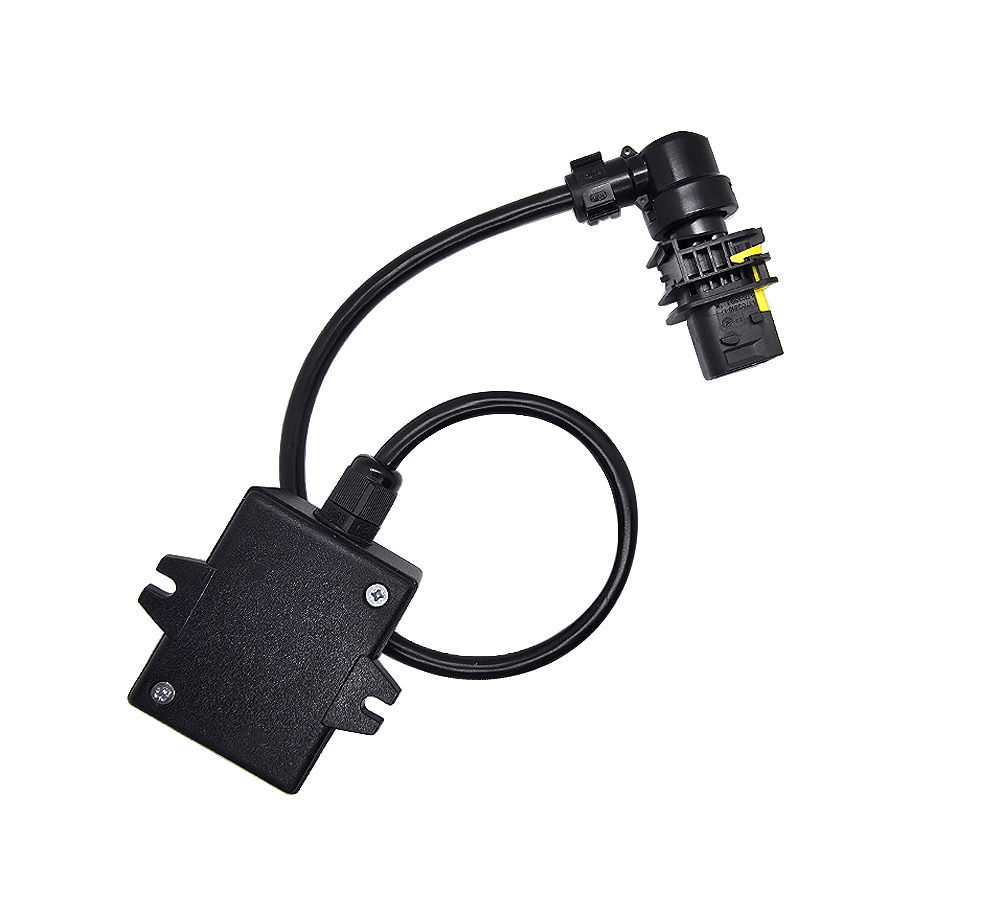

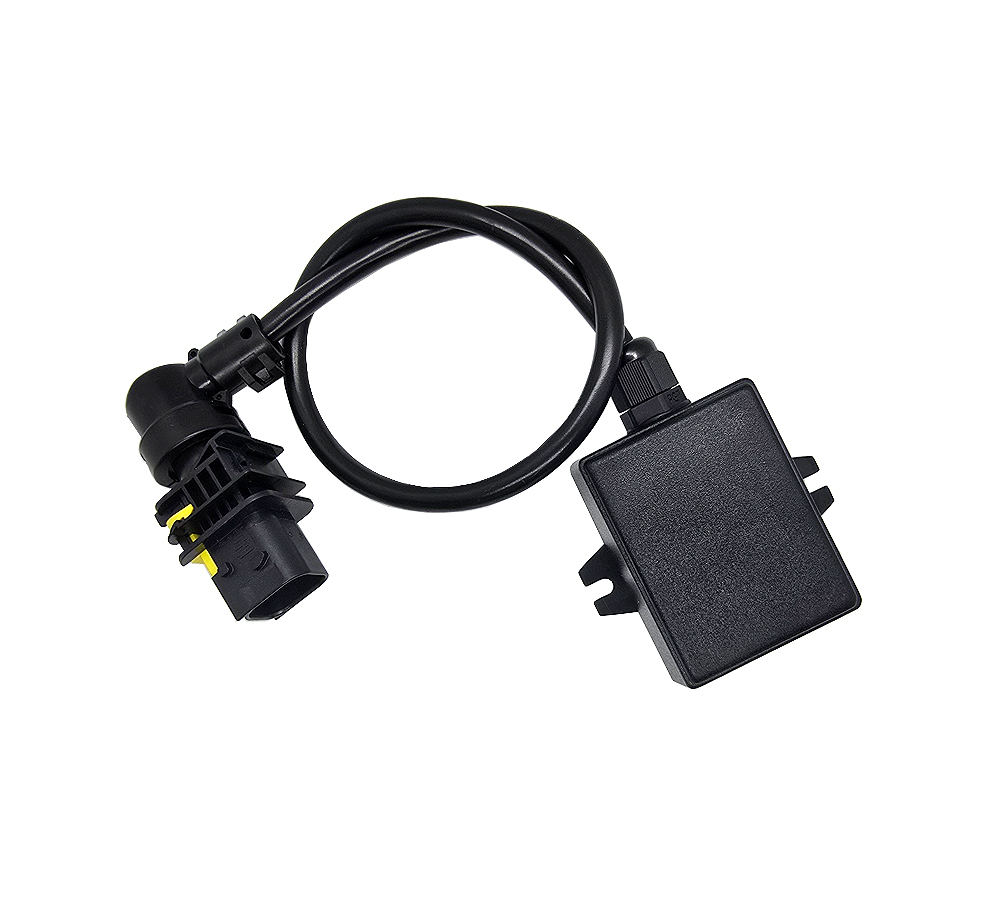

SCR / DPF / DEF Emulator For Paccar MX GHG17. Plug and Play version

Our state-of-the-art device, meticulously crafted in Europe with precision and using high-quality components, exemplifies advanced technology. Each unit undergoes extensive testing and quality control measures before being delivered to our esteemed clients.

Key Features:

Comprehensive Emulation: Replaces the entire SCR/DEF/DPF system.
Water Resistance: Engineered to withstand environmental elements.
Industrial-Grade Construction: Manufactured from robust industrial components for enhanced durability.
Quick Connect Model: Facilitates easy installation within seconds for user convenience.

Emulated Components of Aftertreatment System:

• DEF Pump
• NOx Sensor Downstream
• Exhaust Temperature Sensors
• DPF Differential Pressure Sensor
• DEF Gauge/Quality
• PM Sensor
• EAS4 Control Unit

Compatible with Paccar Engines:

• MX-11 GHG17
• MX-13 GHG17

Truck Models compatible:

• Kenworth 2018 ->
• Peterbilt 2018 ->

The set includes:

SCR/DPF/DEF Emulator For Paccar
Installation Manual

Installation Manual:

One crucial step: Before connecting the emulator, it’s essential to disable the derate mode. The truck must not be in derate mode during the emulator connection because once the emulator is connected, it won’t be possible to disable the derate mode. For the emulator to function properly, the EAS4 control unit may be damaged, but it should be electrically functional enough for the emulator to learn the VIN number from the EAS4 unit. The NOx sensor before the catalyst must be operational. Connect the emulator as follows:

PACCAR GHG17 EAS4

Emulator need learn the VIN from Vehicle. AfterTreatment system may be faulty but EAS ECU need work during VIN Learning.

1. Locate NOx Sensor Outlet and Connect Emulator in place of NOx Sensor (NOx Sensor Outlet is located at back of the Exhaust)

2. Switch Ignition ON, Emulator will learn the VIN. LED on Emulator should blink fast next should light up steadily.

3. Switch Ignition OFF

4. Remove Fuse for EAS ECU:

Peterbilt 579 / Kenworth T680 – N11 Fuse

Peterbilt 389 – F6 Fuse

5. Disconnect: PM Sensor, DEF Level/Quality Sensor, Exhaust Temperature Sensor.

2 YEAR WARRANTY

If you are looking for model not listed here and on other list on this shop, please contact us directly on info@bluetruck24.eu with your model number. We will check for compability.
